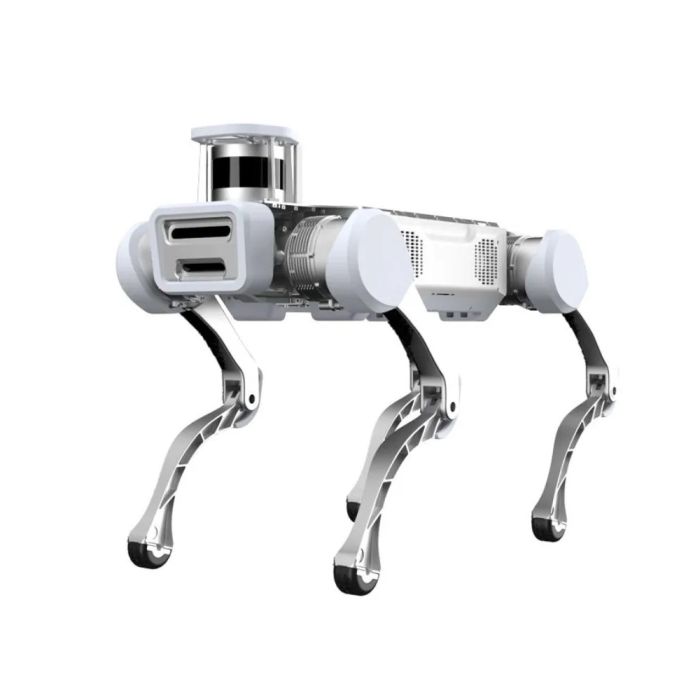

Deep Robotics X20 Industrial Quadruped Robot Dog

Deep Robotics X20 Industrial Quadruped Robot Dog

Rugged All-Terrain Quadruped Robot for Industrial Inspection and High-Risk Operations

The Deep Robotics X20 Industrial Quadruped Robot Dog is an industrial-grade quadruped robotic platform designed for inspection, monitoring, emergency response, and operations in challenging environments. Built for demanding industrial applications, X20 combines powerful mobility, advanced perception, high payload capacity, and rugged environmental protection.

With its four-legged locomotion system, X20 can navigate a wide range of terrain including grass, sand, gravel, snow, stairs, curbs, and uneven surfaces. Its robust mobility allows it to access areas that may be difficult or hazardous for conventional wheeled robots or human operators.

The X20 incorporates advanced perception and autonomous navigation capabilities to support intelligent movement through complex environments. LiDAR and depth-sensing technologies provide environmental awareness while dynamic obstacle avoidance and terrain recognition help the robot navigate changing surroundings.

Designed for professional field deployment, the X20 features IP66 protection and extended operating endurance. Its modular architecture also allows additional sensors, communication equipment, positioning systems, and robotic accessories to be integrated for specialized missions.

Key Features

• Industrial-grade quadruped robot
• All-terrain mobility
• Up to 20 kg safe working load
• Up to 85 kg maximum working load
• Maximum speed up to 4.95 m/s
• Approximately 20 cm obstacle clearance
• Approximately 30° slope capability
• 2–4 hours operating endurance
• Approximately 15 km mileage
• IP66 environmental protection
• Advanced LiDAR and depth perception
• Dynamic obstacle avoidance
• Terrain recognition
• Autonomous navigation
• Autonomous charging capability
• Modular payload integration
• Multiple communication interfaces
• External power outputs for connected equipment

Why Choose Deep Robotics X20?

• Designed specifically for industrial applications
• Built for demanding outdoor and hazardous environments
• High payload capacity supports mission-specific equipment
• Advanced perception supports autonomous inspection
• Quadruped mobility provides excellent terrain adaptability
• IP66 protection supports operation in challenging conditions
• Modular architecture allows specialized equipment integration
• Extended endurance supports longer inspection missions

Ideal Applications

• Power infrastructure inspection
• Industrial inspection
• Pipeline inspection
• Emergency response
• Search and rescue
• Mining operations
• Tunnel inspection
• Construction inspection
• Security and surveillance
• Hazard detection
• Infrastructure monitoring
• Remote and high-risk operations
