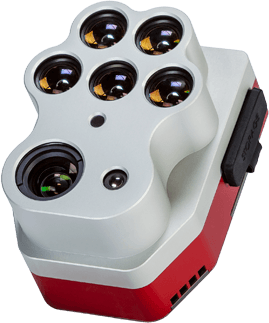

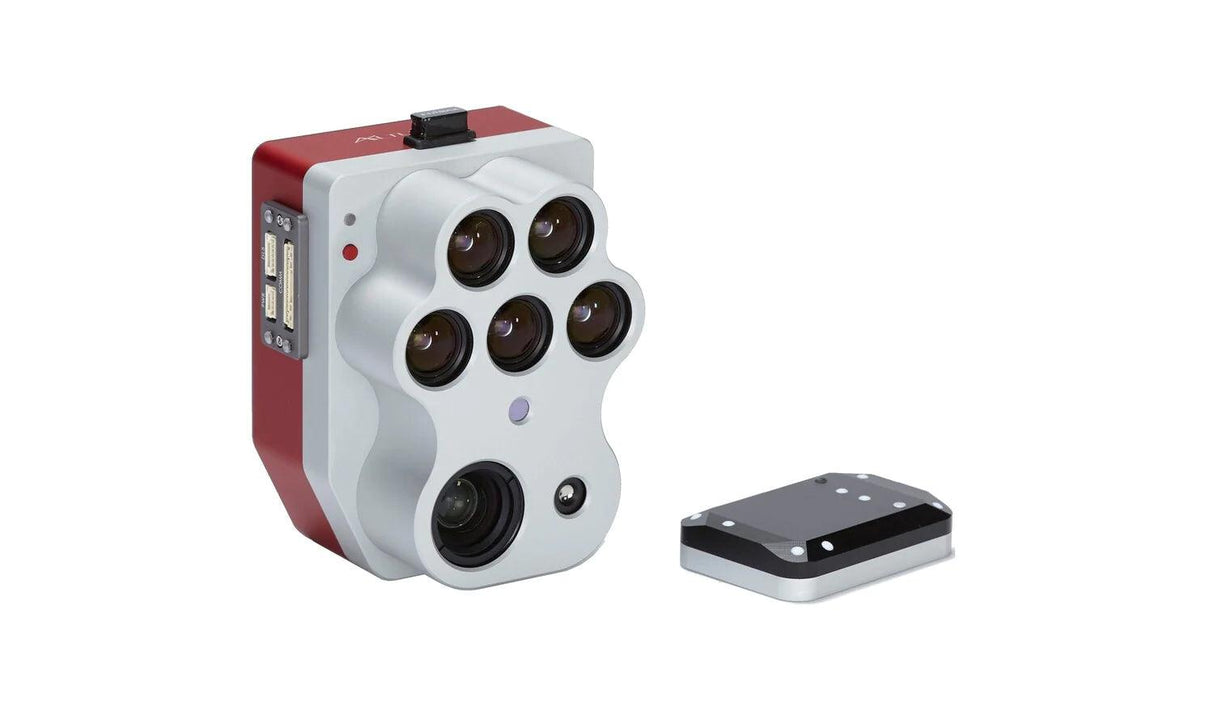

MicaSense Altum-PT | Advanced Multispectral and Thermal Remote Sensing
The MicaSense Altum-PT is an optimized 3-in-1 solution for advanced remote sensing and agricultural research. Seamlessly integrating a 12 MP high-resolution panchromatic sensor, a thermal sensor delivering twice the ground resolution of the previous Altum, and five discrete spectral bands, the MicaSense Altum-PT increases data accuracy and repeatability for precision agriculture and machine learning applications. NDAA compliant.
MicaSense Altum-PT Key Features
High-Resolution Panchromatic Sensor
The 12.4 MP panchromatic sensor enables pan-sharpening of multispectral imagery, achieving 1.25 cm per pixel ground resolution when flying at 60 m — significantly increasing the spatial detail available for precision analysis and plant-level applications.
Built-In Thermal Sensor
The integrated 320×256 FLIR Boson® thermal sensor delivers accurate thermal maps at a GSD of 17 cm from 60 m flight altitude for crop stress detection and field-level temperature analysis.
5 Multispectral Bands
- Blue (475 nm center, 32 nm bandwidth)
- Green (560 nm center, 27 nm bandwidth)
- Red (668 nm center, 14 nm bandwidth)
- Red edge (717 nm center, 12 nm bandwidth)
- Near-IR (842 nm center, 57 nm bandwidth)
Capture Rate of Up to 2 Images per Second
CFexpress removable storage up to 2 TB enables up to two captures per second, immediate turnaround between flights via card swapping, and fast card-to-computer upload speeds for efficient data management.
Calibrated Multispectral Imagery
Each MicaSense Altum-PT kit includes a Reflectance Panel for ground calibration and a DLS2 light sensor for irradiance and sun angle measurements — providing accurate, reliable data for time series analysis and comparable outputs over time.
Powerful AI Capabilities
The panchromatic band enables high-resolution RGB, multispectral, and thermal imagery for machine learning applications including plant counting and advanced vegetation research.
Open Interface for Easy Integration
The Altum-PT SkyPort ensures perfect compatibility with DJI M300 RTK drones.
