FC30 MULTI-SEGMENT AIRDROP

FC30 Multi-Segment Airdrop | Advanced Delivery Kit for DJI FlyCart 30

The FC30 multi-segment airdrop kit is an advanced aerial delivery system designed specifically for the DJI FlyCart 30 delivery drone. Featuring 12 airdrop hooks, laser-assisted targeting, and DJI Pilot 2 integration, the FC30 multi-segment airdrop enhances the FlyCart 30's delivery capabilities with a robust, flexible, and high-capacity payload mechanism.

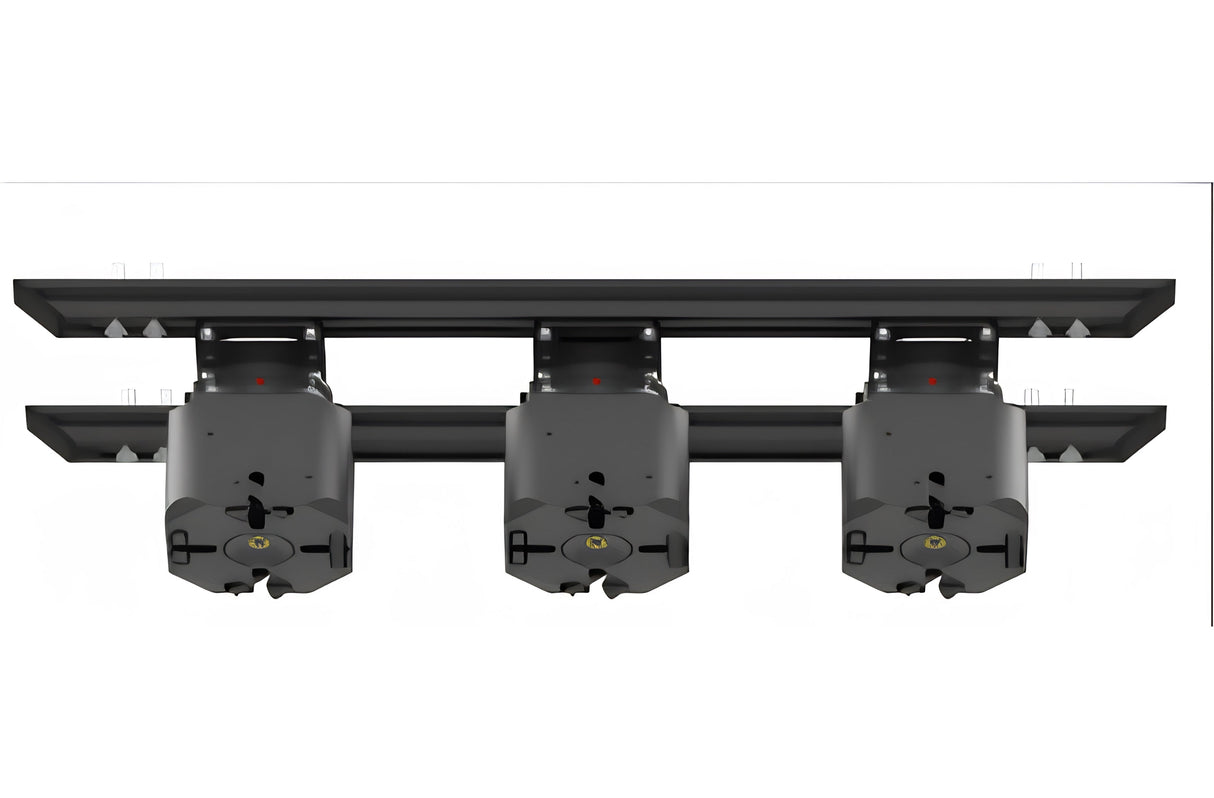

The kit includes one FC30 Center Mounted 3-Load Bracket capable of simultaneously supporting up to three ET4 airdrop devices — with a maximum single-hook load capacity of 10 kg and a total maximum payload capacity of 120 kg across 12 airdrop segments.

FC30 Multi-Segment Airdrop Key Features

• Designed for the DJI FlyCart 30 delivery drone
• 12 total hooks with 10 kg maximum single-hook load capacity
• Total maximum payload capacity of 120 kg across 12 airdrop segments
• Includes FC30 Center Mounted 3-Load Bracket supporting up to 3 ET4 airdrop devices
• DJI Pilot 2 compatible for mounting, detection, deployment, and control
• Laser-assisted targeting for accurate airdrop delivery
• Quick-release ET Gimbal Port for fast installation
• IP4X protection for field environmental durability
• Free Airdrop and One-Key Airdrop release modes
• Operating temperature -10°C to 50°C

Specifications

• Supported Model: DJI FlyCart 30
• Control: DJI Pilot 2
• Total Hooks: 12 (4 hooks per ET4 airdrop device)
• Max Single-Hook Capacity: 10 kg
• Total Max Payload: 120 kg
• Bracket Size: 362 × 95 × 30 mm
• Single ET4 Size: 58 × 58 × 58 mm
• Overall Weight: 950 g (350 g bracket + 200 g × 3 airdrops)
• Installation: Quick-release ET Gimbal Port
• Electrical Interface: JZ T-Port (cable to E-Port Lite)
• Protection Rating: IP4X
• Max Power Consumption: ≤10W
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -20°C to 60°C

Applications

• Humanitarian aid and disaster relief supply delivery
• Medical supply and equipment delivery
• Commercial and retail logistics
• Agricultural distribution of seeds, fertilizers, and field supplies
• Emergency response payload deployment
