Autel Robotics Dragonfish Nest

Autel Dragonfish Nest | Cover the Frontier

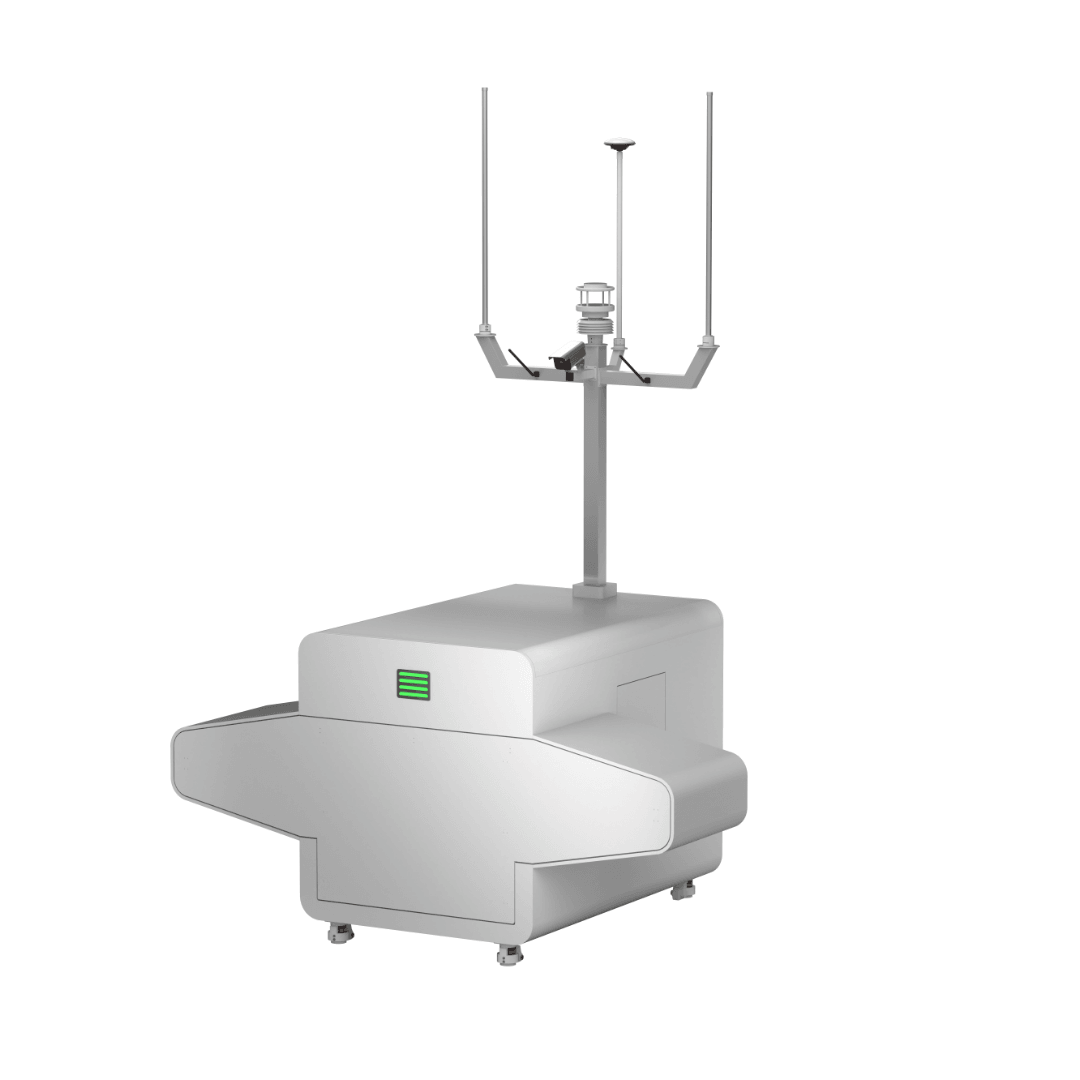

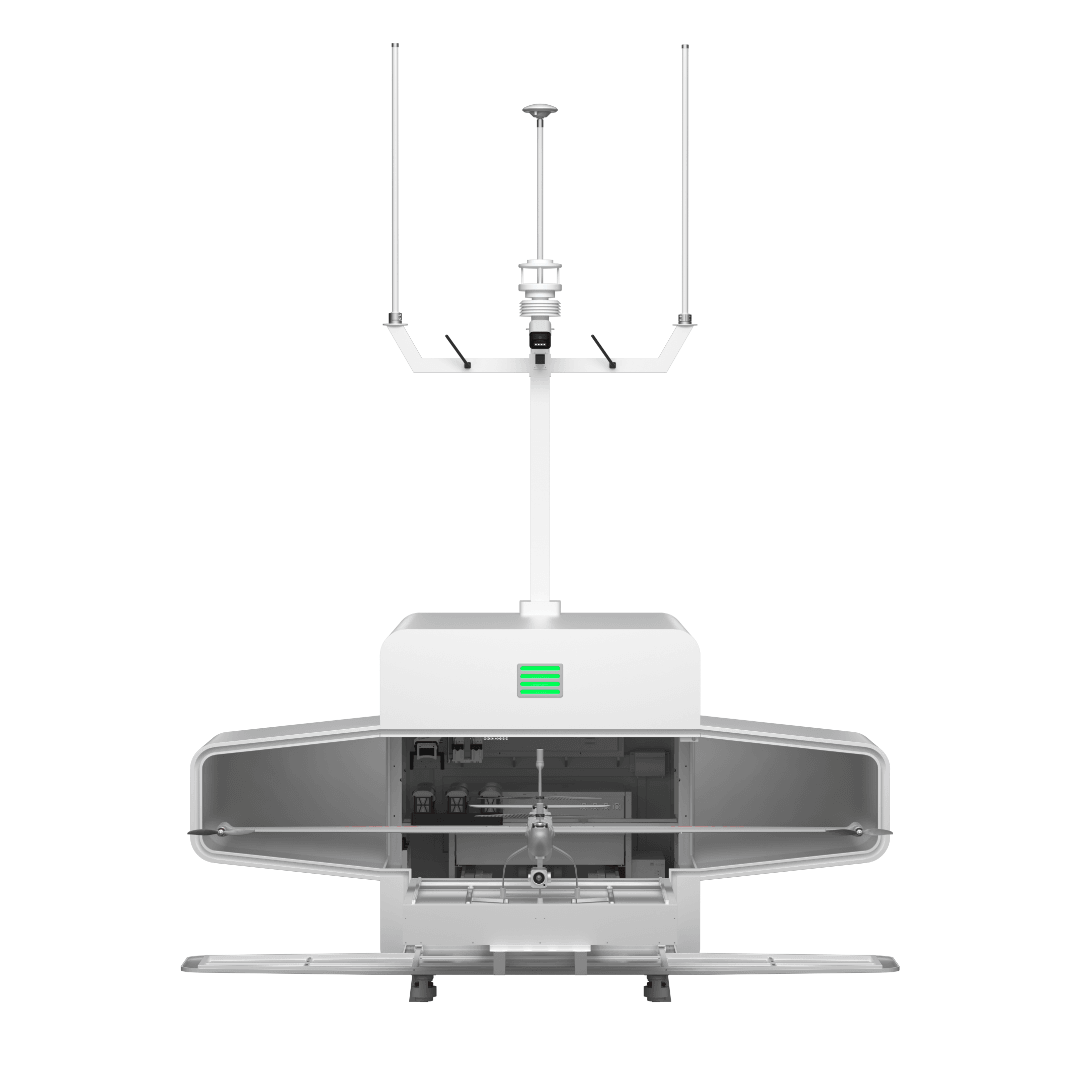

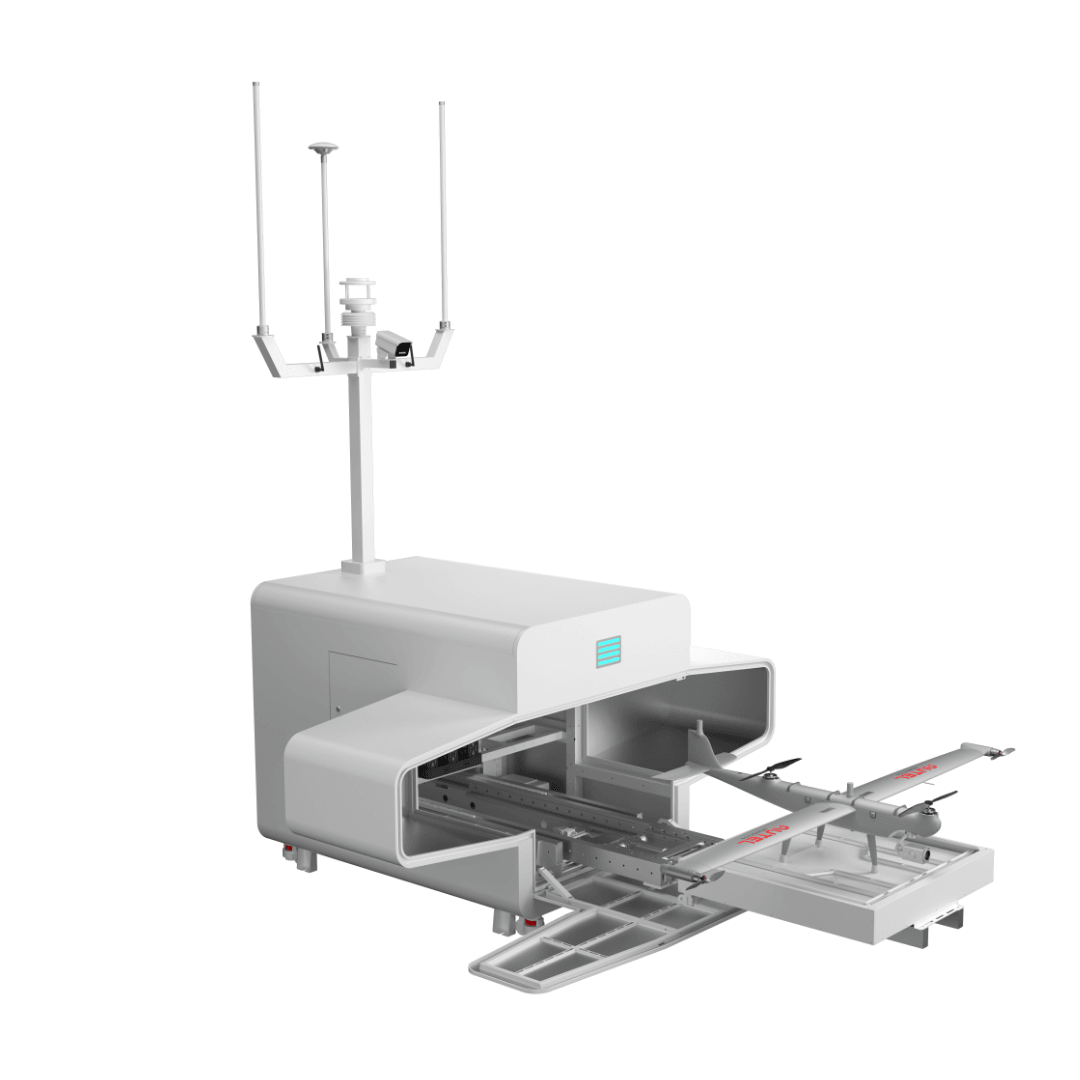

The Autel Dragonfish Nest is the world's first automated eVTOL support system. With a range of up to 75 miles between units, the Autel Dragonfish Nest combines the high performance of the Dragonfish aircraft with autonomous takeoff, landing, charging, and flight mission management — making it the ideal solution for long-range corridor inspections and large-area coverage missions.

• Auto takeoff, landing, and charging
• Intelligent data storage and processing
• Backup power supply
• Pallet-sized for standardized transport

Autel Dragonfish Nest Key Features

The Dragonfish ecosystem provides the only long-range, tilt-wing VTOL solution with fully autonomous capabilities. The Autel Dragonfish Nest enables organizations to cover entire pit mines, oil and gas pipelines, and powerlines across multiple regions — with a 75-mile range that requires fewer docking stations to build and maintain. Flying faster and farther than traditional multi-rotor UAS, it significantly accelerates aerial survey and inspection timelines.

Solution Advantages

• Automatic flight and recharging between missions
• Backup power supply for uninterrupted operations
• Temperature control for all-weather deployment
• Aircraft management and fleet coordination
• Environment and weather monitoring systems
• Real-time monitoring and live data access

Technical Specifications

Dimensions (L×W×H)

Closed (incl. antenna): 70.87 × 104.33 × 111.02 inches
Opened (incl. antenna): 183.86 × 104.33 × 111.02 inches

Charging Type

Automatic power swap

Battery Quantity

6 batteries

IP Rating

IP54 — rainproof and corrosion resistant

Monitor System

Weather monitoring, video surveillance, and take-off and landing positioning systems

Communication

Ethernet, optical fiber (customizable), 4G, 5G (customizable)

Operating Frequency

Standard: ≤200W | Peak: 2,200W

Weight

1,279 lbs

Surge Protection

40 KA

Compatible Aircraft

Autel Dragonfish Lite, Autel Dragonfish Standard

Applications

• Border patrol and perimeter monitoring
• Powerline inspection and corridor survey
• Oil and gas pipeline inspection
• Mine and large-area site inspection

For more information about the Autel Dragonfish Nest and compatible aircraft, visit the Autel Drones collection or contact our team to discuss your deployment requirements.
