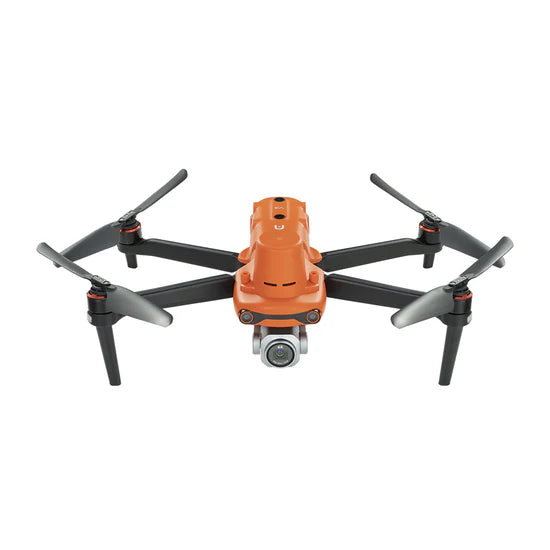

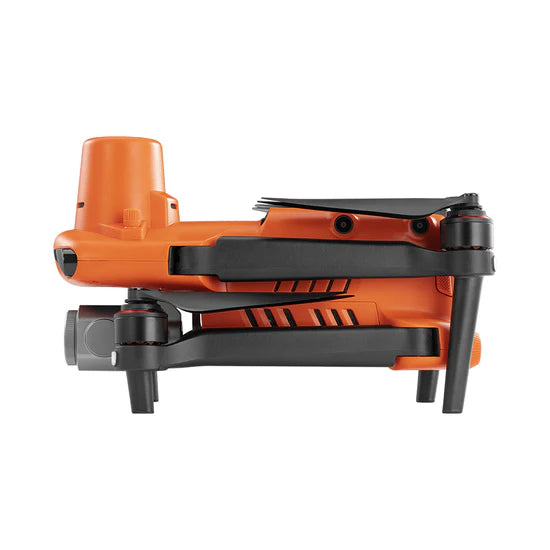

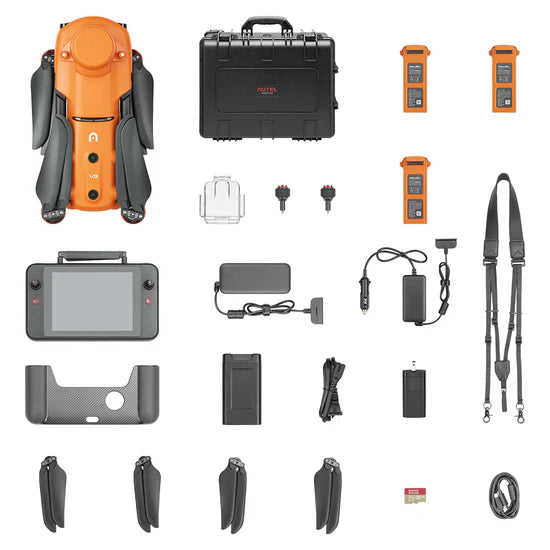

Evo II Pro 6K RTK Rugged Bundle V3
EVO II Pro RTK V3 | Unrivaled Accuracy and Control for Aerial Mapping
The EVO II Pro RTK V3 is built for precision data collection in complex environments. A high-performance RTK positioning module delivers real-time centimeter-level accuracy, while advanced flight planning tools streamline photogrammetry missions. With a 1-inch 20MP CMOS sensor and upgraded imaging pipeline, the EVO II Pro RTK V3 captures detailed, low-noise datasets suitable for professional surveying and 3D modeling workflows — designed for mapping teams who require portability without compromising data integrity.
EVO II Pro RTK V3 Key Features
Centimeter-Level RTK Positioning
A brand-new RTK module provides real-time centimeter-level positioning and supports Post-Processing Kinematic (PPK) workflows. The aircraft records original satellite observation data and camera exposure parameters for precise georeferencing.
- RTK Horizontal Positioning Accuracy: 1 cm + 1 ppm
- RTK Vertical Positioning Accuracy: 1.5 cm + 1 ppm
No Ground Control Points Required
Connect directly to an NTRIP service for highly accurate data acquisition without deploying ground control points in the field.
3rd-Party Base Station Compatibility
Supports all NTRIP-compatible base stations for flexible field operations across diverse project sites.
Mapping Intelligence
Autel Explorer provides powerful mission planning and automated data-capture tools for the EVO II Pro RTK:
- Photo Replication: Repeatable mission accuracy by replicating gimbal angle, camera settings, and flight path parameters
- Multi-NTRIP Profile Saving: Save multiple network configurations for fast deployment at different sites
- Multi-Battery Mission Continuity: Resume missions automatically after battery swaps while maintaining dataset alignment
Advanced Flight Patterns
- Rectangular or polygon grid missions for maximum mapping efficiency
- Double-grid mapping for oblique capture and 3D reconstruction
- Customizable course headings for project orientation
- Non-stop turning at corners for improved mission efficiency
- Full manual control over camera settings when required
Imaging Performance

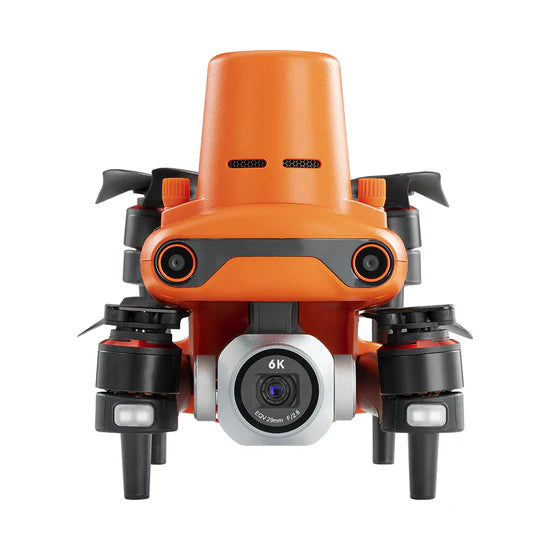

1-Inch 20MP 6K Ultra-Sensitive Sensor
A new 1-inch 20MP 6K CMOS sensor delivers a wide dynamic range with excellent low-light performance for late-day and challenging lighting operations.
Adjustable Aperture
f/2.8 to f/11 aperture range enables better exposure control during changing lighting conditions across diverse mapping environments.
Optimized for Post-Processing
Clean, detailed datasets are easier to correct, stitch, and render in industry-standard photogrammetry tools including Pix4D, DroneDeploy, and Agisoft.
3× Lossless Zoom
Up to 3× lossless zoom preserves full image quality when capturing distant details during inspection or mapping missions.
