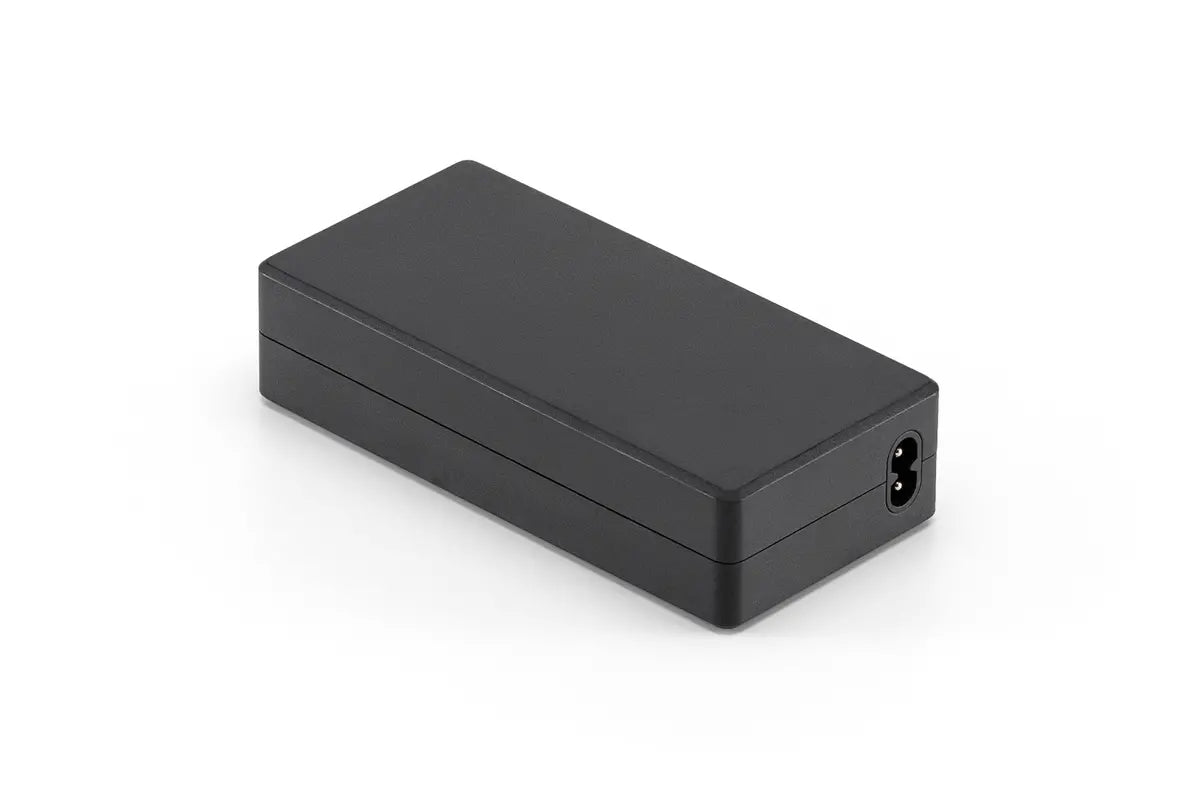

DJI 240W Power Adapter

DJI 240W Power Adapter | Fast Charging for DJI Matrice 4D Series

The DJI 240W Power Adapter features one SDC output port and one USB-C output port, suitable for charging compatible charging hubs, remote controllers, or other mobile devices that can be charged via USB-C. The DJI 240W Power Adapter delivers fast, reliable charging for enterprise drone operations that demand quick turnaround between missions — charging a DJI Matrice 4D Series battery from 15% to 90% in just 30 minutes.

DJI 240W Power Adapter Key Features

• Max 240W total output power
• One SDC output port and one USB-C output port (max 65W)
• Charges a DJI Matrice 4D Series battery from 15% to 90% in 30 minutes
• Wide input voltage range: 100-240V AC, 50-60Hz, max 3A
• Operating temperature range of 5° to 35°C (41° to 95°F)
• Simultaneous dual-port charging supported (USB-C drops to max 45W when both ports are in use)

Specifications

• Product Model: CDX230-240
• Input Voltage: 100-240V (AC), 50-60Hz, max 3A
• Output Power: Max 240W (total), max 65W (USB-C)
• Operating Temperature: 5° to 35°C (41° to 95°F)
• Charging Time: DJI Matrice 4D Series battery from 15% to 90% in 30 minutes

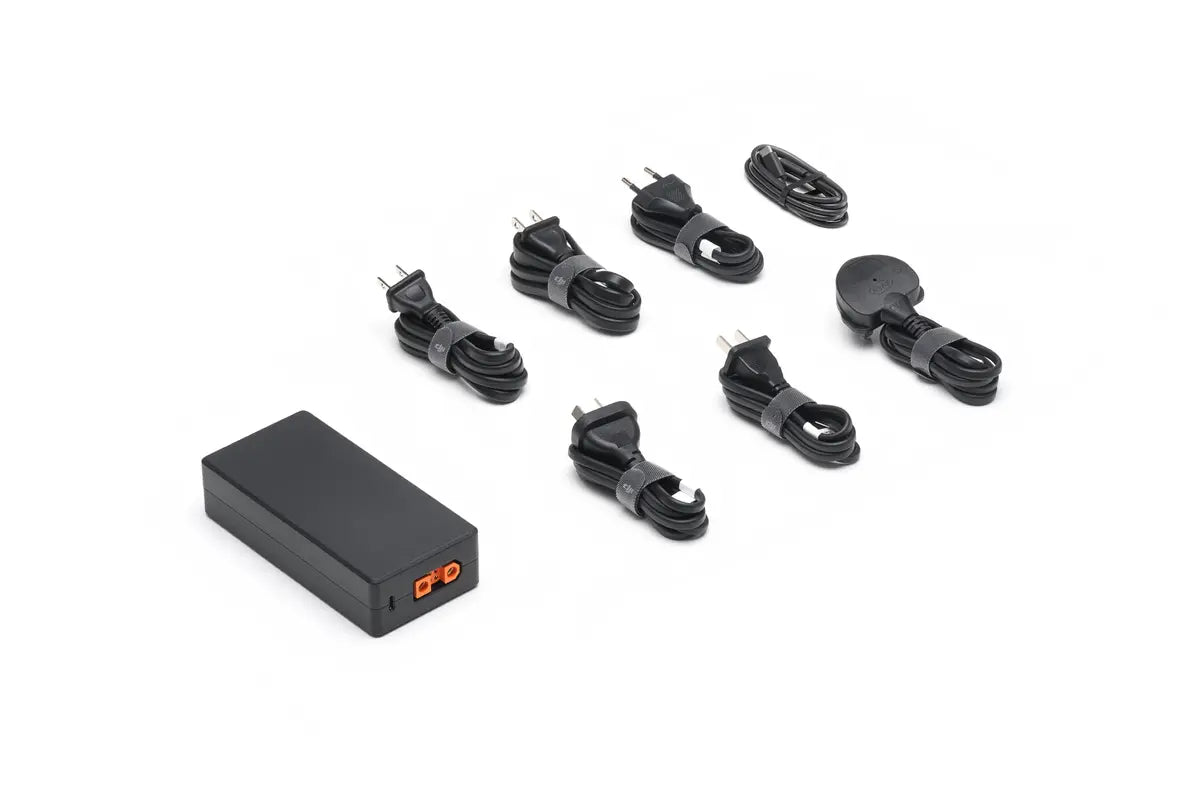

In the Box

• 240W Power Adapter × 1
• Type-C Cable × 1
• Power Adapter AC Cable* (plug type and quantity may vary by country or region)

Safety and Maintenance

• Do not touch the metal terminals on the battery ports
• Clean the metal terminals on the battery case with a clean, dry cloth if there is any noticeable buildup
• Charger specifications may vary depending on the region of purchase; refer to the plug specifications provided at the time of purchase

Ideal Applications

• DJI Matrice 4D Series fleet charging operations
• Field-based remote controller and accessory charging
• Mobile command station power setups
• Public safety and inspection team field deployments
• Multi-device charging for drone operations centers
