Aerobo Wing

Long-Range VTOL Fixed-Wing Drone for Inspection, Surveying & Disaster Assessment

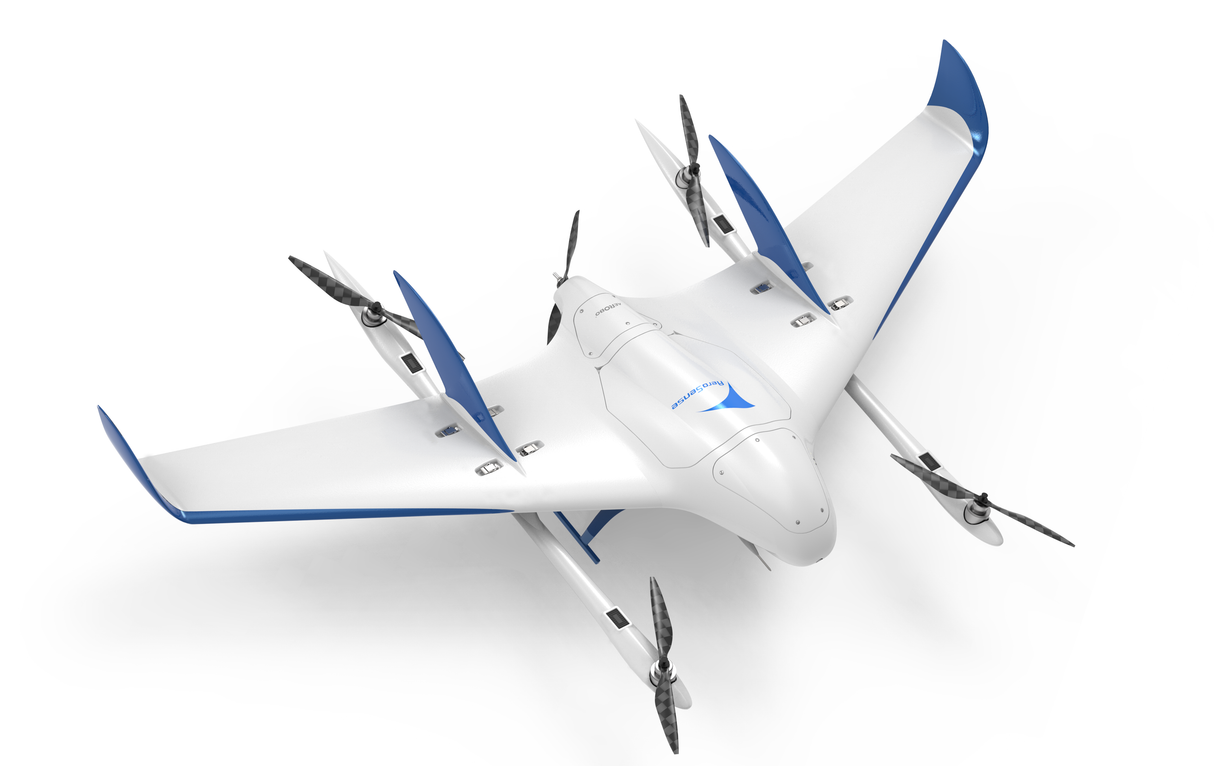

The AeroSense AS-VT02K (Aerobo Wing) is a professional-grade VTOL (Vertical Takeoff and Landing) fixed-wing unmanned aircraft engineered for long-range industrial inspection, surveying, and emergency response operations. Designed and manufactured in Japan, the AS-VT02K combines runway-free vertical takeoff capability with efficient fixed-wing cruise flight, enabling extended aerial coverage with operational flexibility.

Built for endurance, autonomous flight performance, and field reliability, the AS-VT02K supports mission-critical operations across infrastructure networks, environmental monitoring projects, and disaster-affected regions.

Built for Wide-Area Industrial Operations

Large-scale infrastructure assets such as highways, rail corridors, pipelines, coastlines, and river systems require aerial platforms capable of covering significant distances efficiently. The AS-VT02K is purpose-built for these extended missions, delivering stable, high-precision flight performance across wide geographic areas.

Its hybrid airframe reduces deployment complexity while maximizing mission coverage per flight.

Hybrid VTOL Fixed-Wing Performance

The AS-VT02K integrates vertical takeoff and landing capability with fixed-wing aerodynamic efficiency. This hybrid configuration allows the aircraft to launch and recover in confined areas while transitioning seamlessly into long-range forward cruise flight.

Key performance advantages include:

• Vertical takeoff and landing without runway requirements
• Efficient fixed-wing cruise for extended-distance missions
• Operational range up to approximately 70 km
• Cruise speed of approximately 72 km/h
• Maximum speed up to 100 km/h
• Flight endurance up to 59 minutes

Engineered for Field Reliability

Industrial and government operations often require deployment in demanding environments. The AS-VT02K is engineered for durability and stable performance under real-world conditions.

Operational resilience features:

• IP43-rated dust and water resistance
• Operating temperature range from −10°C to 40°C
• Wind resistance up to 10 m/s during fixed-wing flight
• Transportable design for field mobility

Autonomous Flight & Integrated Safety Systems

The AS-VT02K supports fully autonomous flight through pre-programmed mission planning software. From takeoff to landing, missions can be executed with minimal manual input while maintaining advanced safety protocols.

Integrated safety features include:

• Automatic return-to-home functionality
• Automated landing capability
• Emergency transition to multicopter mode if required
• Dual-band GNSS support (GPS, GLONASS, Galileo, BeiDou, QZSS)
• 2.4 GHz and LTE communication options
• Dual FPV cameras for forward and downward situational awareness

Payload Flexibility for Diverse Mission Requirements

The AS-VT02K supports interchangeable payload configurations up to 1.6 kg, allowing operators to tailor the aircraft for specific operational objectives.

Supported payload types include:

• High-resolution RGB cameras
• Thermal imaging sensors
• Surveying and mapping payload systems
• Custom imaging and sensor integrations

Technical Specifications

Aircraft Specifications:

• Model: AS-VT02K
• Type: Fixed-Wing VTOL UAV
• Dimensions: 2.1 × 1.2 × 0.4 m (excluding propellers)
• Weight (with battery): Approximately 10 kg
• Maximum Takeoff Weight: 11.6 kg
• Maximum Payload Capacity: 1.6 kg
• Power System: 2 × 6S LiPo batteries

Flight Performance:

• Maximum Flight Time: Up to 59 minutes
• Maximum Range: Up to 70 km
• Cruise Speed: Approximately 72 km/h
• Maximum Speed: 100 km/h
• Wind Resistance: Up to 10 m/s

Systems & Environmental:

• Ingress Protection Rating: IP43
• Operating Temperature: −10°C to 40°C
• Navigation: Multi-constellation GNSS
• Communication: 2.4 GHz / LTE
• Country of Manufacture: Japan

Ideal Applications

• Linear infrastructure inspection (railways, highways, pipelines)
• Large-area mapping and land surveying
• River and coastal monitoring
• Environmental observation and data collection
• Disaster assessment and emergency reconnaissance
• Enterprise and government aerial operations
