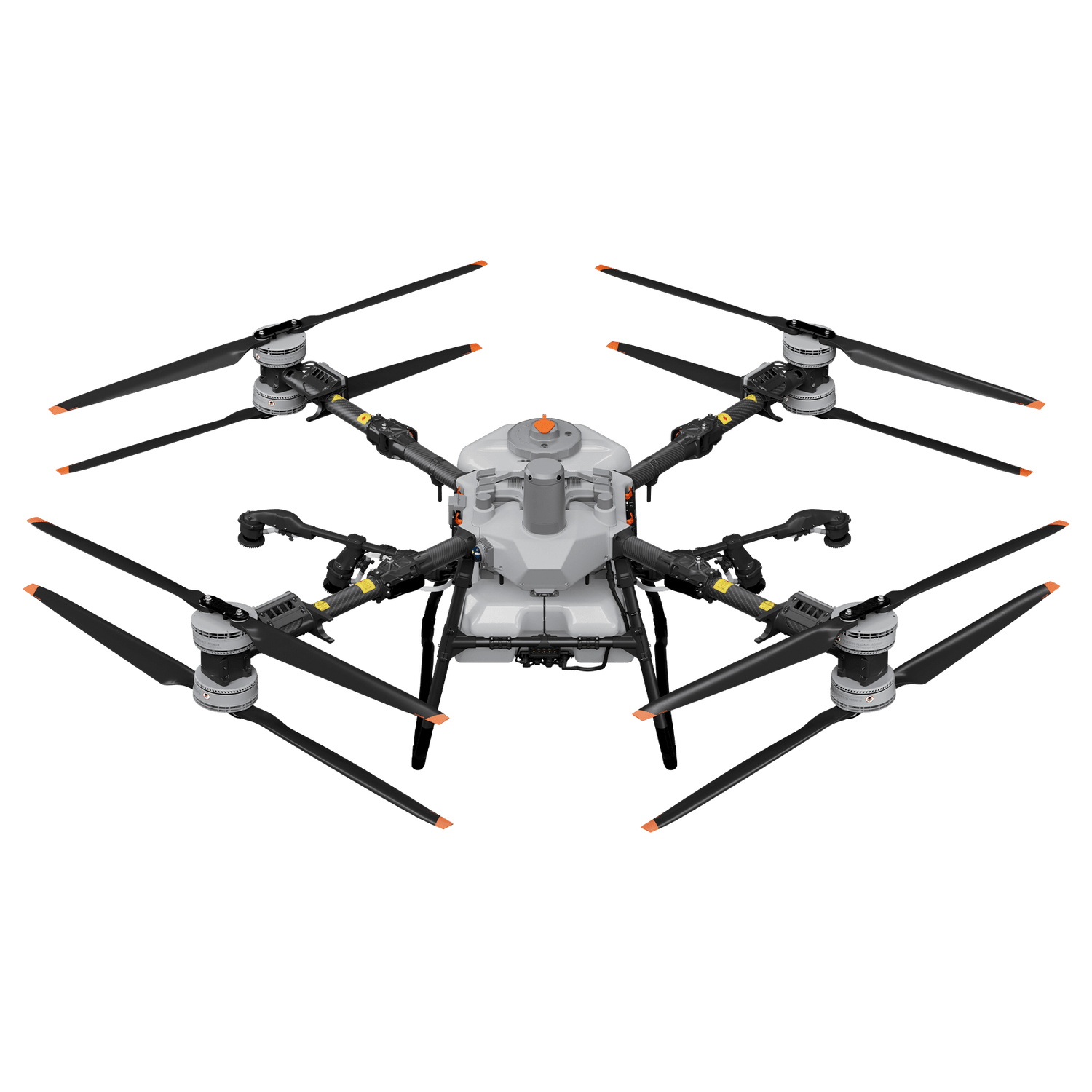

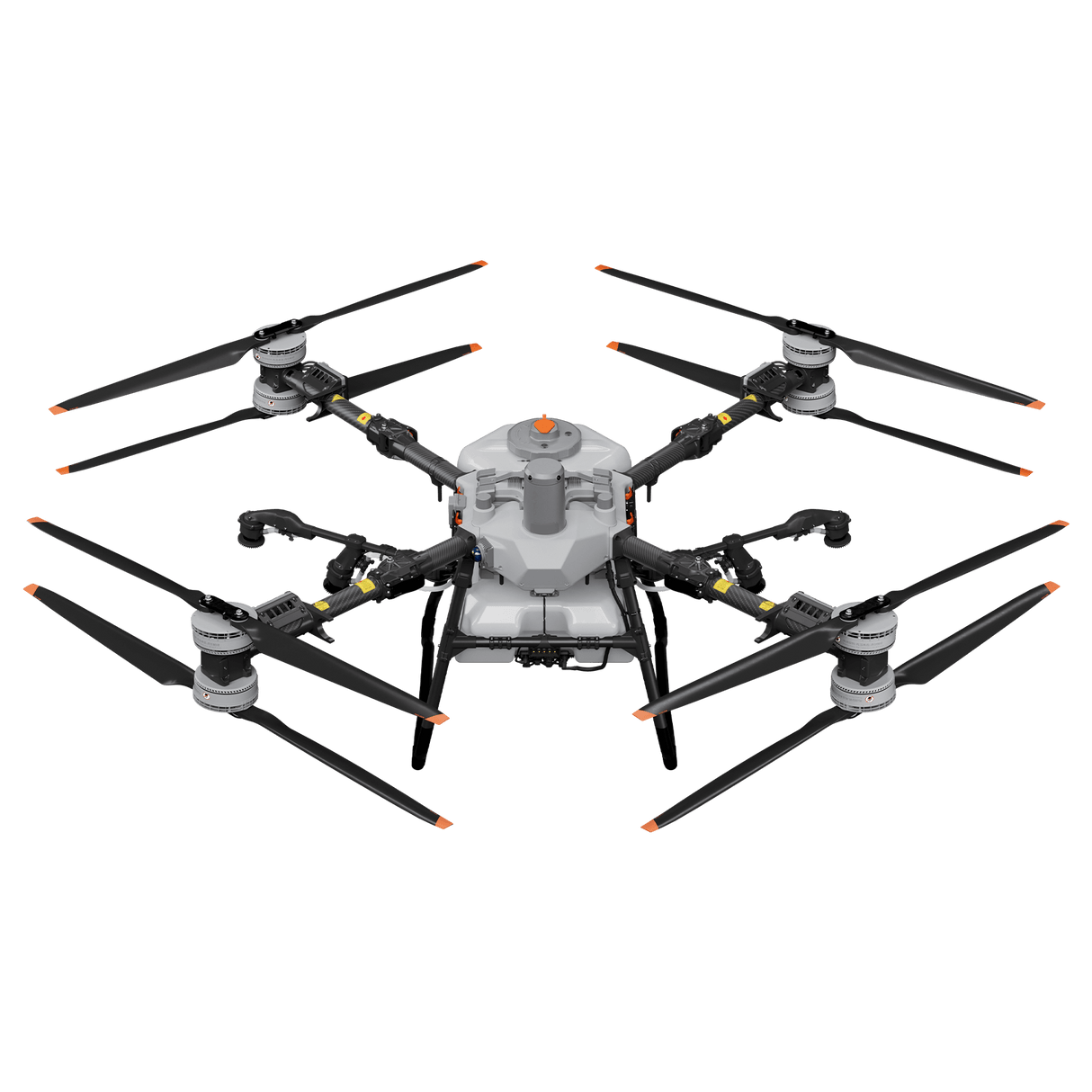

DJI Agras T100

DJI AGRAS T100



The DJI AGRAS T100 is built for professionals who demand scale, efficiency, and safety. Designed over twelve years, this agricultural powerhouse carries up to 100 kg, supporting high-volume spraying, spreading, and lifting tasks. With cutting-edge safety systems and intelligent flight algorithms, the T100 brings unmatched performance and confidence to your operations.

Key Features

With a 100-liter spraying tank capable of delivering up to 40 liters per minute, and a 150-liter spreading tank pushing out up to 400 kilograms per minute, the AGRAS T100 is ready for large-scale deployment. It supports flight speeds of up to 20 meters per second, and its lifting mode allows it to transport up to 100 kilograms per flight. Advanced onboard systems, including LiDAR, Penta-Vision cameras, and millimeter-wave radar, deliver 360° situational awareness for safe, stable, and intelligent operation. The system also supports ultra-fast charging to minimize downtime between flights.



Spraying System

The T100’s spraying system is engineered for high efficiency and adaptability. Its dual atomizing centrifugal sprinklers deliver a variable droplet size between 50 and 500 microns, making it suitable for both broadacre field operations and dense canopy orchards. The optional water-cooled mist sprinkler creates finer droplets as small as 50 microns, perfect for penetrating foliage and covering the undersides of leaves in tall, thick trees. A magnetic-drive impeller pump ensures a corrosion-resistant and reliable performance, while the four-sprinkler rear array expands spray width without blocking the operator's visibility. For precision, the dual-channel electromagnetic flow meter detects liquid flow in real-time without coming into contact with the solution, enhancing both accuracy and lifespan.

Spreading System

The AGRAS T100’s spreading system delivers double the load capacity and a 270% increase in flow rate compared to earlier models. Its 150-liter tank supports a wide 10-meter spread path and can deliver up to 400 kilograms per minute. The redesigned screw feeder enhances accuracy and works across a variety of granular materials. A high-precision weighing sensor gives operators real-time feedback on the material remaining, and automatically calibrates flow rate for efficiency and minimal waste. A centrifugal spreader disc ensures uniform coverage, while the large loading gate makes bulk refills easy. The system supports four interchangeable feeder sizes, adaptable for materials like fertilizer, cover crops, grass seed, or granular pesticides.



Safety System

The AGRAS T100 sets a new benchmark for drone safety. A combination of LiDAR, millimeter-wave radar, and the Penta-Vision multi-camera system ensures real-time 360-degree awareness. The LiDAR captures up to 300,000 data points per second, while the front radar executes 5,000 vertical airspace scans per second in a 360-degree sweep. The Penta-Vision system uses five cameras, including an FPV low-light camera, to monitor the drone’s environment from all angles. Combined with stabilization algorithms and electronic image correction, the system enables smooth and safe navigation—even in complex terrain.

This drone also supports enhanced night-time operations with high-beam lights and downward-facing LEDs. Safety features like AR flight route overlays, real-time LiDAR point cloud displays, obstacle type detection, automatic terrain following on slopes up to 90 degrees, and memory-based obstacle avoidance bring peace of mind to every flight.

Lift System

In lift mode, the AGRAS T100 can carry up to 100 kilograms, making it an ideal solution for transport and delivery scenarios in rugged or hard-to-reach areas. This adds an entirely new dimension of utility for agricultural operations, emergency logistics, or specialized industrial applications.



Charging System

Downtime is minimized thanks to DJI’s ultra-fast charging solutions. The T100’s battery system is built for rapid swaps and recharges, enabling longer operational hours and higher daily throughput.
